Pet Bottle Pure Water Filling Capping Beverage Packaging Machine Plant

Name: Pet Bottle Pure Water Filling Capping Beverage Packaging Machine Plant
Brand: KALU INDUSTRY
Price: negotiable USD
Availability: InStock

Large Image : Pet Bottle Pure Water Filling Capping Beverage Packaging Machine Plant

Product Details:

Contact Now

Detailed Product Description

Highlight:

Beverage Packaging Machine Plant

Pet Bottle Filling Capping Machine

Pure Water Filling Capping Machine

Pet Bottle Pure Water Filling Capping Beverage Packaging Machine Plant 0

Water Filling Machine

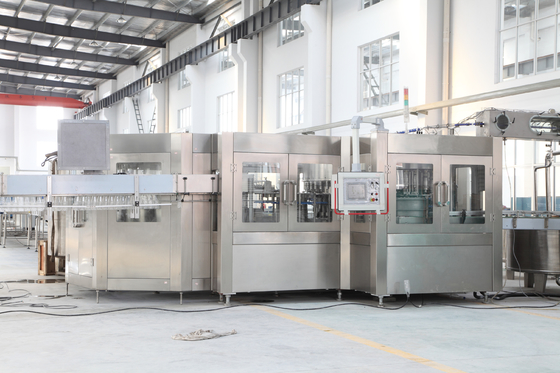

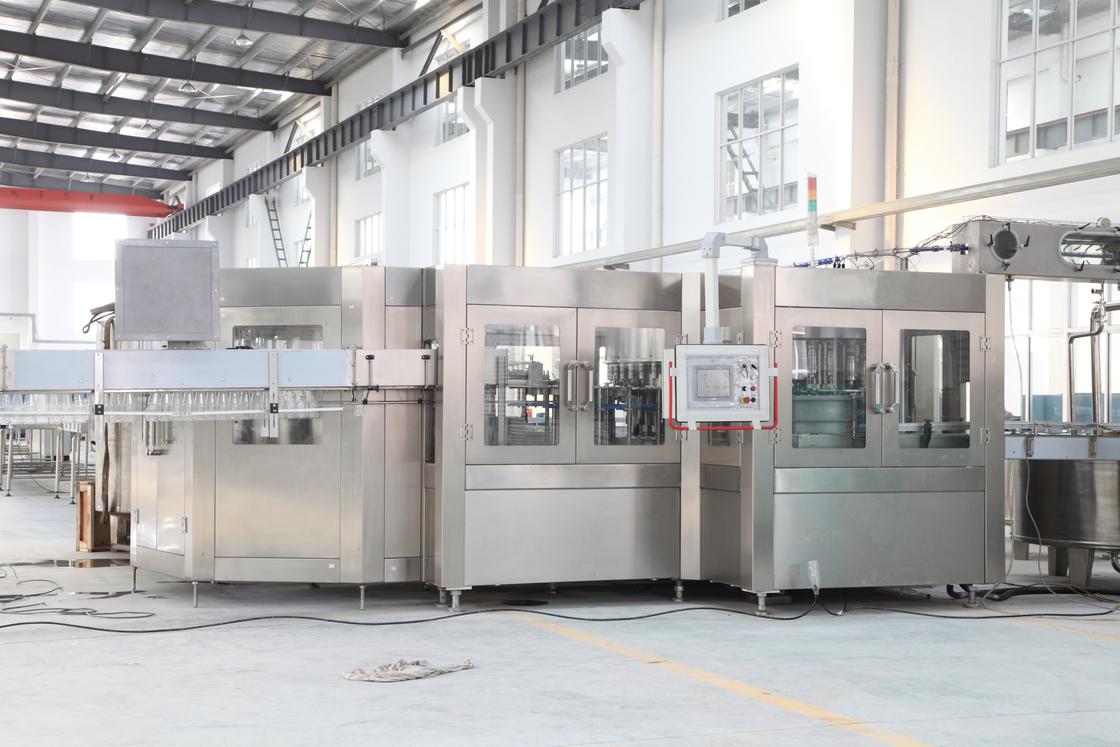

XGF three-in-one machine for PET bottle integrates the functions of rinsing, filling and capping together. Based on advanced technology overseas and designed according to the filling processing demands of mineral water, pure water etc.

Name	XGF24-24-8
Number of working position	24 rinsing heads 24 filling heads 8 capping heads
Full Capacity	12,000BPH 500ml
Bottle range	Diameter:50~110mm; Height:186~330mm
Pressure of air source	0.7Mpa
Air consumption	1.25m3/min
Rinsing water pressure	0.2~0.25Mpa
Rinsing water consumption	5T/H
Motor power	11KW
Dimension	6,120x4,650x2,700 (LWH)mm
Total weight	15,000KGS

Complete Production Line

Whole water line:

Bottle blowing machine

Water treatment system

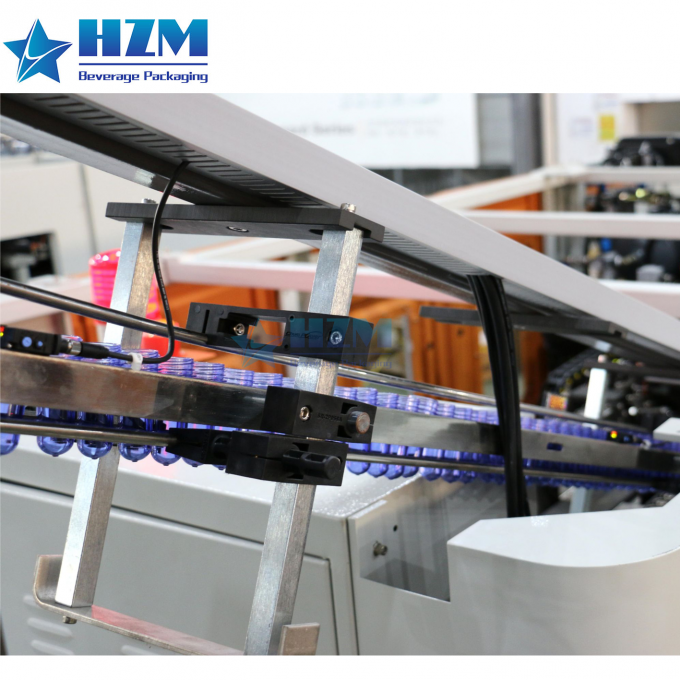

Conveyors system

Water bottle washing filling capping machine

Bottle dryer

Bottle labeling machine

Bottle packing machine

Bottle blowing machine

Bottle blow molding machine is used to make containers for product, PET preforms are heated by lamps and then blowed by high pressure clean air within mold. It will become a bottle container as you designed. The blow molding machine capacity normally from 1,000BPH to 24,000BPH

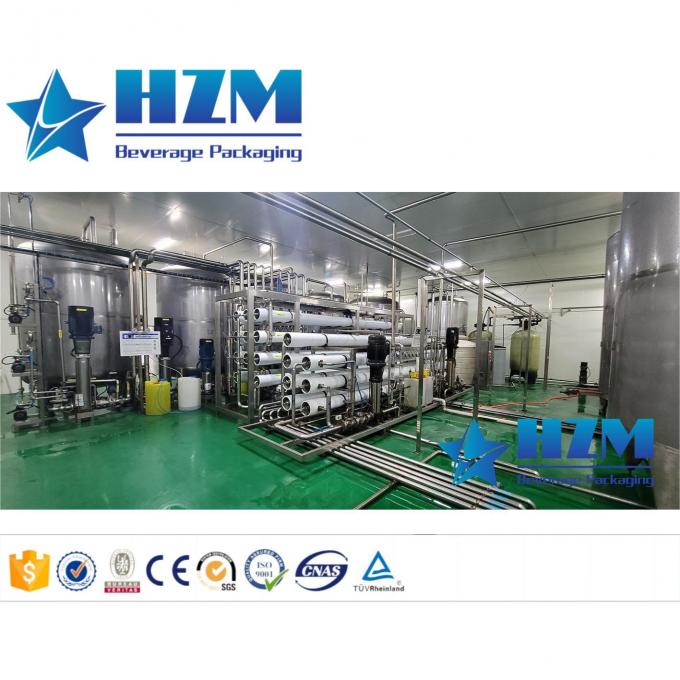

Water treatment system

Water treatment system includes:raw water pump, sand filter, active carbon filter, control cabinet, precision filter, one

stage ro device, ro output water tank, ozone systemRaw water can from lake, river, well, etc.

All the machines made of sus316, and have independent control cabinet

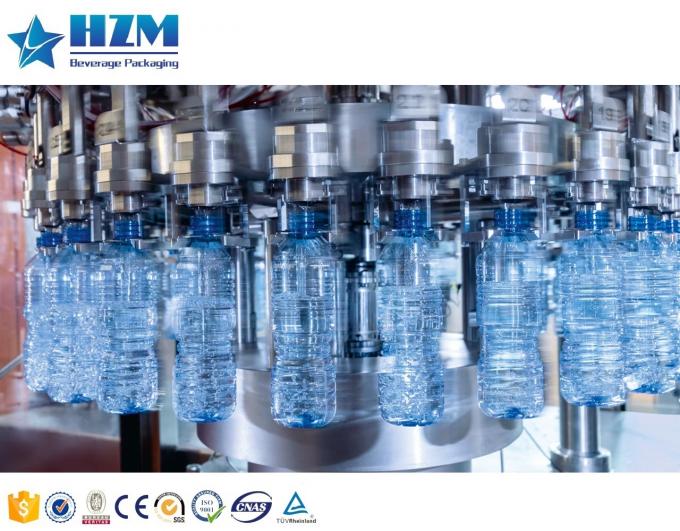

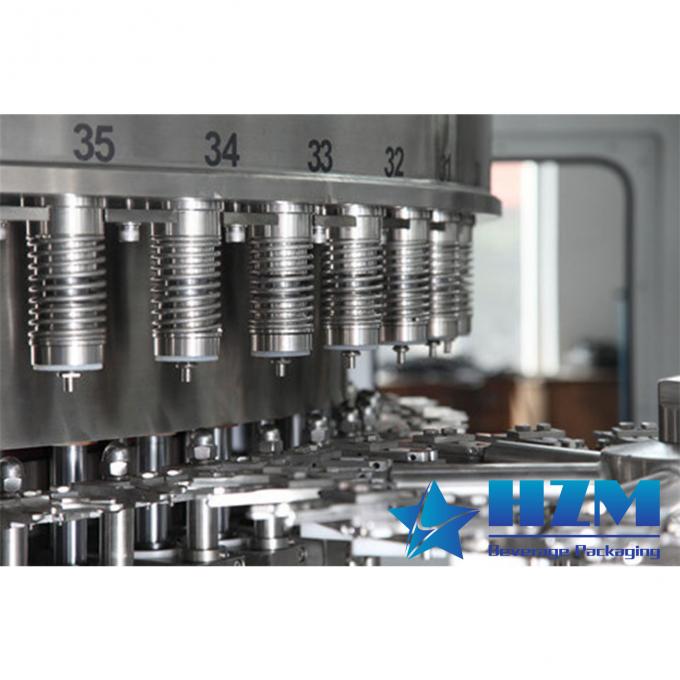

Water filling machine

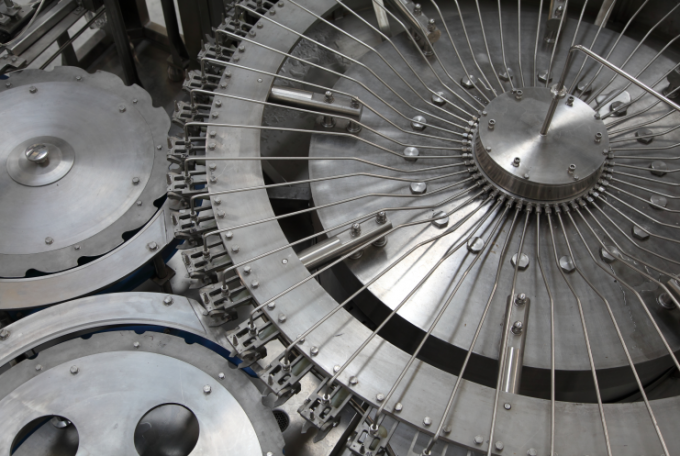

Bottle filling machine is a fully automatic multifunctional combined unit consisting washing, filling and capping. The bottle filling machine is the step of put materials into containers and seal it. It's very important and sensitive for quality control.The filling machine capacity in our industry normally start from 2,000BPH up to 36,000BPH.

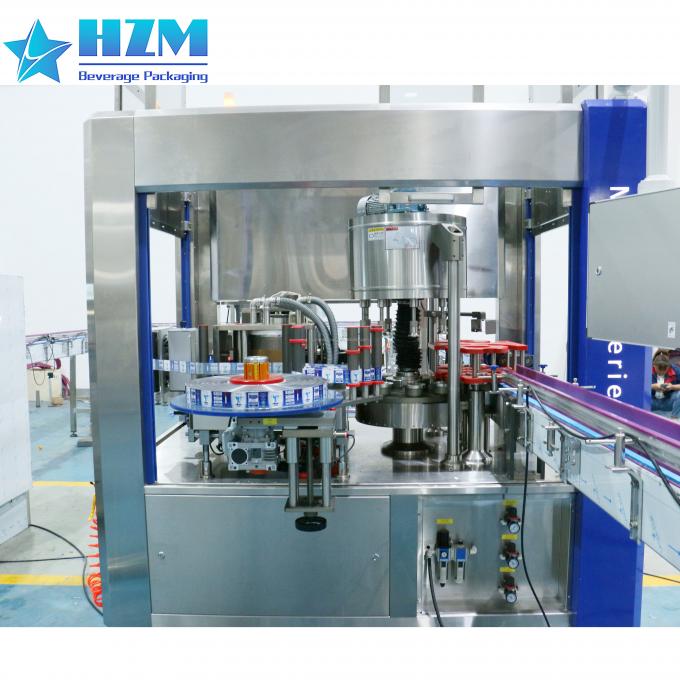

Label sleeve labeling machine

There are different machines, such as BOPP labeling, sleeve and shrink labeling and adhevise labeling etc. The capacity for labeling machine starts from 2,000BPH up to 20,000BPH, we can choose different but suitable ways for customers.

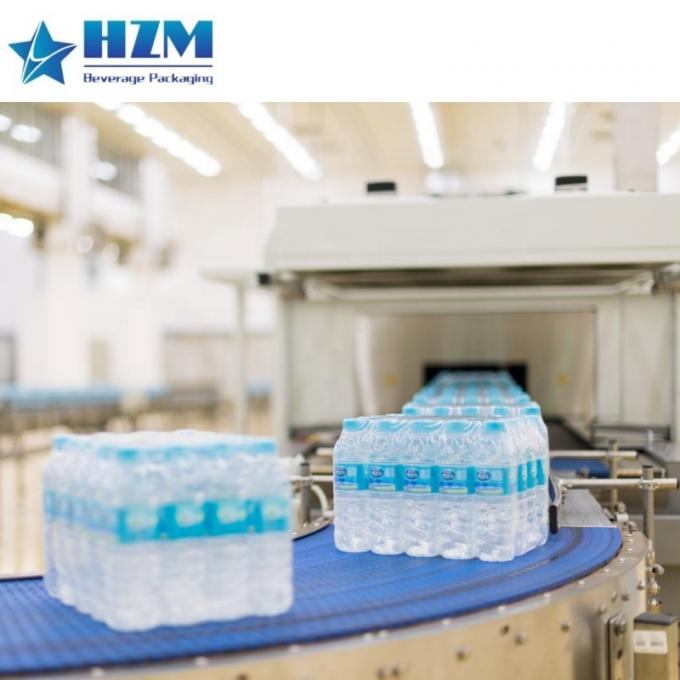

Bottle packing machine

Bottle packing machine is the last step for production line usually. There are different ways for packing such as shrink packing, carton packing, half- tray wuth shrink packing etc. Bottle packaging machine speed usually from 10PPM up to 80PPM, all confirgurations we used are world famous brand to ensure the machine quality.
