Automatic Complete Drinking Mineral Water Production Line

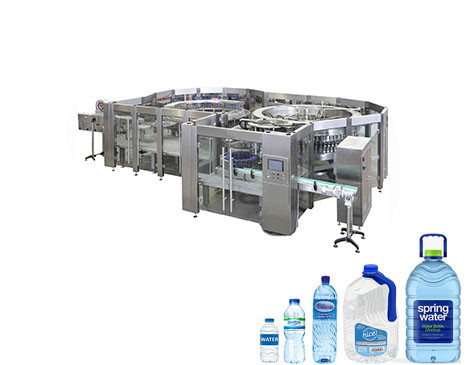

Large Image : Automatic Complete Drinking Mineral Water Production Line

Product Details:

Place of Origin:	China
Certification:	CE
Model Number:	XGF

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	wooden box
Delivery Time:	2 monthes
Payment Terms:	L/C,T/T,Western Union

Contact Now

Detailed Product Description

Highlight:

Automatic Complete Mineral Water Production Line

Complete Drinking Mineral Water Production Line

Drinking Mineral Water Production Line Automatic

Automatic complete drinking mineral water bottling production line / pet bottle pure water filling capping plant machine

Bottled water filling machine adopts new type star wheel transmission technology, perfectly realizes the automatic operation of washing, filling and capping, meanwhile avoids the abrasion of bottle body, and drives accurately and smoothly. The electric system adopts the world famous brand, which effectively guarantees the stable and reliable operation of the equipment.It is suitable for most kinds of drinking water, distilled water.,etc Production capacity ranges from 4,000 bottles per hour to 36,000 bottles per hour based on 500ml volume.

PRODUCT OVERVIEW

Name	XGF
Number of working position	32 rinsing heads 32 filling heads 8 capping heads
Full Capacity	12000-14000 BPH
Bottle range	Diameter:50~110mm; Height:186~330mm
Pressure of air source	0.7Mpa
Air consumption	1.2m3/min
Rinsing water pressure	0.2~0.25Mpa
Rinsing water consumption	5T/H
Motor power	2.6KW
Dimension	3800×2950×2400 (LWH)mm
Total weight	6000KG

PRODUCT FEATURES

This water filling machine has a compact structure, perfect control system, easy to operate and highly automated.

Only by changing the star-wheel, arch board can realize fill bottle shape change.

The parts contact with product is made of quality SUS316/304, anti-corrosive, and easy to clean.

Rapid flow, highly filling precision, nicety liquid level without any liquid loss to satisfy the filling process demand.

The capping head adopts constant torque magnetic device to guarantee capping quality and impact cap.

This water filling machine has a high efficient cap arranging system, perfect cap feeding with self-control and self-protection device.

The water filling machine adopts perfect overload protective device can ensure the operator and machine safety.

The control system has many functions, such as control producing speed, cap shortage detection, bottle block automatic stop and production counting etc.

The main electric and air-drive components are world famous brand products.

All control is advanced touch-screen operation and realize people-computer dialogue operation.

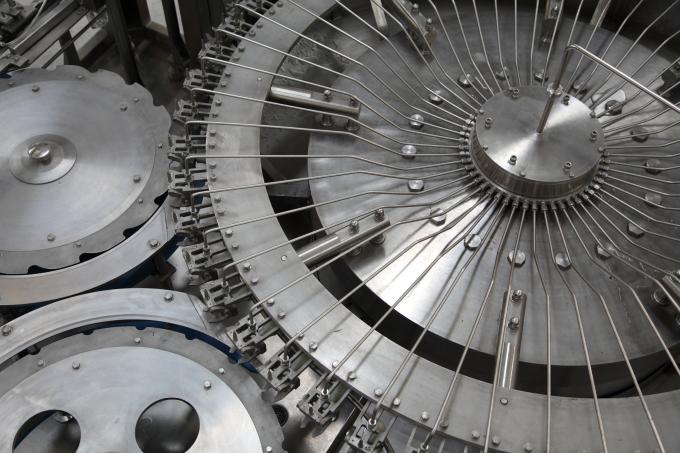

Rinsing Part

This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle clamp.

The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall,

saving rinsing water.

Covering of bottle clamps and elevator are product of Igus.

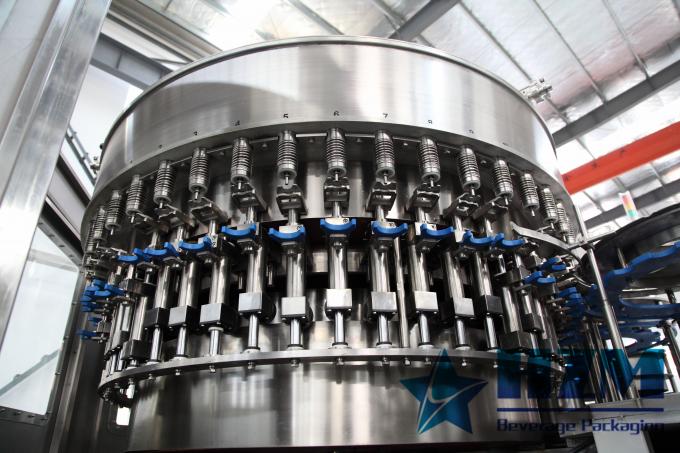

Filling Part

Filling valves are designed and manufactured with German technology, featuring high filling accuracy and high filling speed.2. All sliding bushes of lifting device use Igus (Germany) anti-corrosion maintenance free bearing.
 Filling valves are made of SUS316.
Hydraulic pump is float-ball controlled.

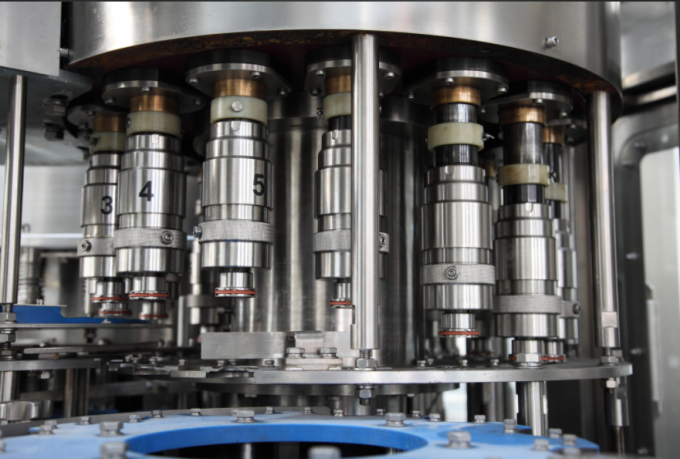

Capping Part

1. Highly effective acentric way for cap sorting to reduce the abrasion.2. The fall guide rail has the device to prevent the reversal cap from passing and pick out the reversal cap.
3.  It has the bottle check-up switch to control the cap flow and stop it in case no bottle to reduce the cap quantity.

Automatic pure water filling machine bottling machine

PRODUCT CONFIGURATIONS

Item	Remark
Main motor+ Reducer	SEW-Germany
Inverter	SIEMENS-Germany
PLC	SIEMENS-Germany
Touch screen	SIEMENS-Germany
Contactor	SCHNEIDER-France
Hot relay	SCHNEIDER-France
Air switch	SCHNEIDER-France
Photoelectric switch	LEUZE/BANNER-Germany
Pneumatic components	FESTO-Germany
Sliding bearing	IGUS-Germany
Lubrication system	BEKA-Germany

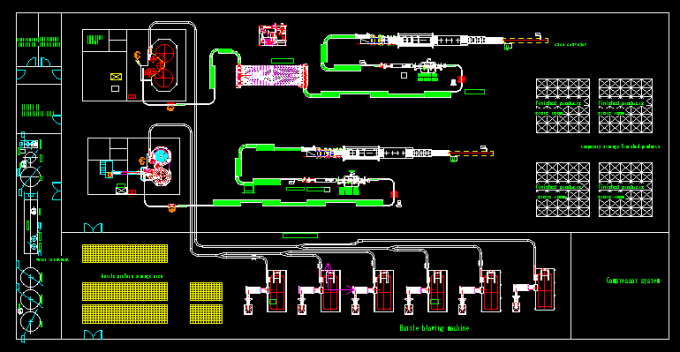

Turnkey solution provider

HZM machinery is committed to be a reliable the liquid packaging machinery supplier.  Our services range from planning process flow to project coordination and determining the connection of different equipment, so as to provide customers with high-quality, fast and customized services.
