Stone Honeycomb Panel Aluminum Foil Model 3003 H18 5052 H18 Easy To Install

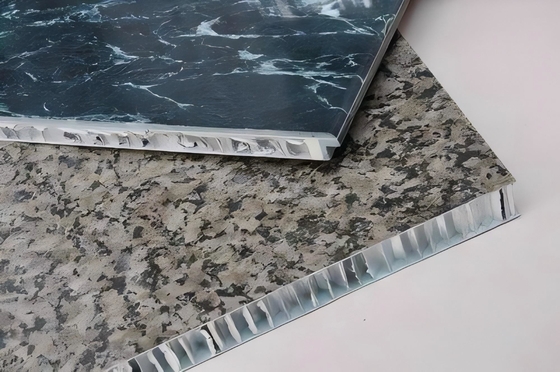

Large Image : Stone Honeycomb Panel Aluminum Foil Model 3003 H18 5052 H18 Easy To Install

Product Details:

Place of Origin:	CHINA
Brand Name:	KALU
Certification:	ISO9001
Model Number:	KALU-CZ-Aluminum-Plate-811

Payment & Shipping Terms:

Minimum Order Quantity:	5 tons per SpecificationV
Price:	usd 25000-40000 per ton
Packaging Details:	Stretch film + non-woven fabric + wooden pallet
Delivery Time:	5-8 work days
Payment Terms:	30% TT advance payment, balance paid before shipment
Supply Ability:	2000 tons per month

Contact Now

Detailed Product Description

Aluminum Foil Model:	3003H18,5052H18	Panel Size:	1m X 1m,1220mm X 2440mm，1500 X 3000mm,customized
Total Thickness:	6mm-200mm	Structure:	Face Material+Adhesive Layer + Honeycomb Core + Backing Materia
Feature1:	High Strength	Feature2:	High Resistance To Contamination
Feature3:	Sound And Moisture Insulation	Feature4:	Energy-efficient Indoor Installation Reduces Electricity And Heat Consumption
Feature5:	Easy To Install	Feature6:	Consumption
Highlight:	3003 h18 Stone Honeycomb Panel , 5052 h18 Stone Honeycomb Panel , Easy install Stone Honeycomb Panel

Product Detail

ZHANGJIAGANG KALU is manufacturer and supplier of Stone Honeycomb Panel.

Stone honeycomb panels are innovative architectural materials that combine the natural beauty of stone with the structural efficiency of honeycomb technology. These panels are crafted by adhering thin layers of stone to lightweight honeycomb cores, resulting in a product that is both strong and lightweight. One of the key advantages of stone honeycomb panels is their sustainability. They use less stone compared to traditional stone cladding, reducing the environmental impact of mining and quarrying. Additionally, the honeycomb core provides excellent insulation properties, which can contribute to energy savings in buildings. The panels are available in a wide range of stone types, from granite and marble to slate and limestone, offering architects and designers a diverse palette of textures and colors to choose from. They are also easy to install, with a system that can be mounted directly onto building facades, reducing installation time and costs. Stone honeycomb panels are not only aesthetically pleasing but also offer durability and low maintenance. They are resistant to weathering and do not require frequent replacement, making them a cost-effective choice for both new constructions and renovation projects. In summary, stone honeycomb panels represent a fusion of modern engineering and traditional materials, providing a sustainable, stylish, and practical solution for contemporary architectural design.

If you have demand of Stone Honeycomb panel,please feel free to contact with us, we will reply you within 24 hours.

Specification

Aluminum foil model	3003H18,5052H18
Panel Size	1m x 1m,1220mm x 2440mm,1500 x 3000mm,customized
Total Thickness	6mm-200mm
Structure	Face Material+Adhesive Layer + Honeycomb Core + Backing Materia

Stone Honeycomb Panel Aluminum Foil Model 3003 H18 5052 H18 Easy To Install 0

Recommended thickness for different scenarios:

external curtain wall	the thickness of stone is 4-5mm,the thickness of aluminum honeycomb panel is >25mm
Internal wall	stone thickness is 3-4mm, honeycomb panel thickness is 15mm
Internal ceiling	the thickness of stone is 3-4mm,the thickness of honeycomb panel is 15-20mm
Floor panels	stone thickness is 5-8mm, honeycomb panel thickness is 10-15mm

Edge treatments: include sealing, beveling, or adding a protective trim.

Stone Honeycomb Panel Aluminum Foil Model 3003 H18 5052 H18 Easy To Install 1

Feature

1.	High strength
2.	High resistance to contamination
3.	Sound and moisture insulation
4.	Energy-efficient indoor installation reduces electricity and heat consumption
5.	Easy to install

Stone Honeycomb Panel Aluminum Foil Model 3003 H18 5052 H18 Easy To Install 2

Stone Honeycomb Panel Aluminum Foil Model 3003 H18 5052 H18 Easy To Install 3

Application

1.	Ceiling
2.	curtain wall
3.	interior wall
4.	floor
5.	building
6.	vehicle
7.	ship
8.	other decorative decoration

Stone Honeycomb Panel Aluminum Foil Model 3003 H18 5052 H18 Easy To Install 4

Stone Honeycomb Panel Aluminum Foil Model 3003 H18 5052 H18 Easy To Install 7

Technical Information

Face Material:

1)Thickness	3mm - 8mm
2)Stone Material	granite, marble, slate and limestone

Honeycomb core

1) Hexagonal cells	Alloy series 3003
2) Diameter in inches	Ø1/4”, Ø3/8”, Ø1/2”, Ø3/4”
3) Foil thickness	from 50 to 80 microns

Backing Material

1)Thickness	Customized
2)Material	Aluminum, plastic or any other substrate

Packaging of Stone Honeycomb Panel

ZHANGJIAGANG KALU Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
